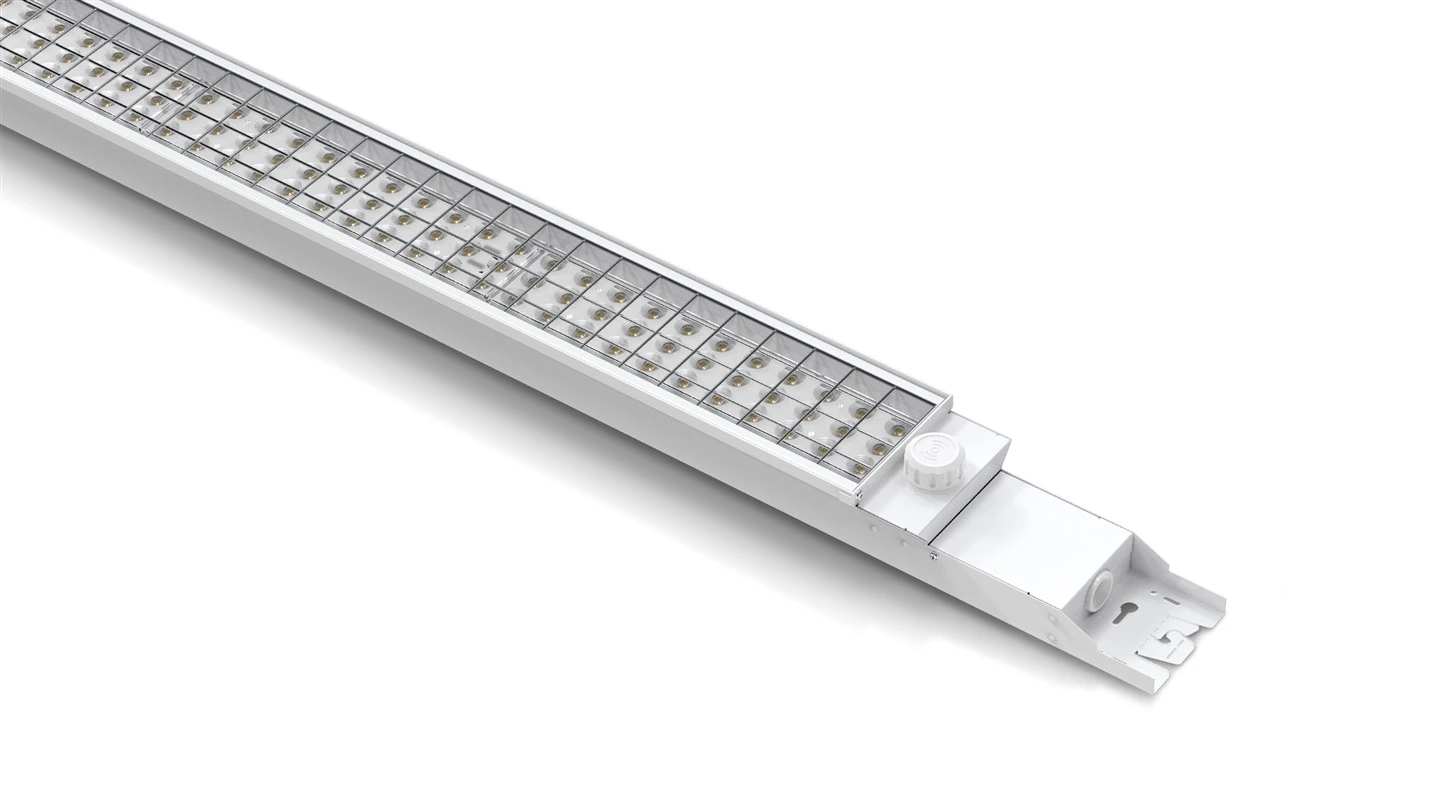

Noridc Industrie Liicht

Noridc Industry Light

Beschreiwung:

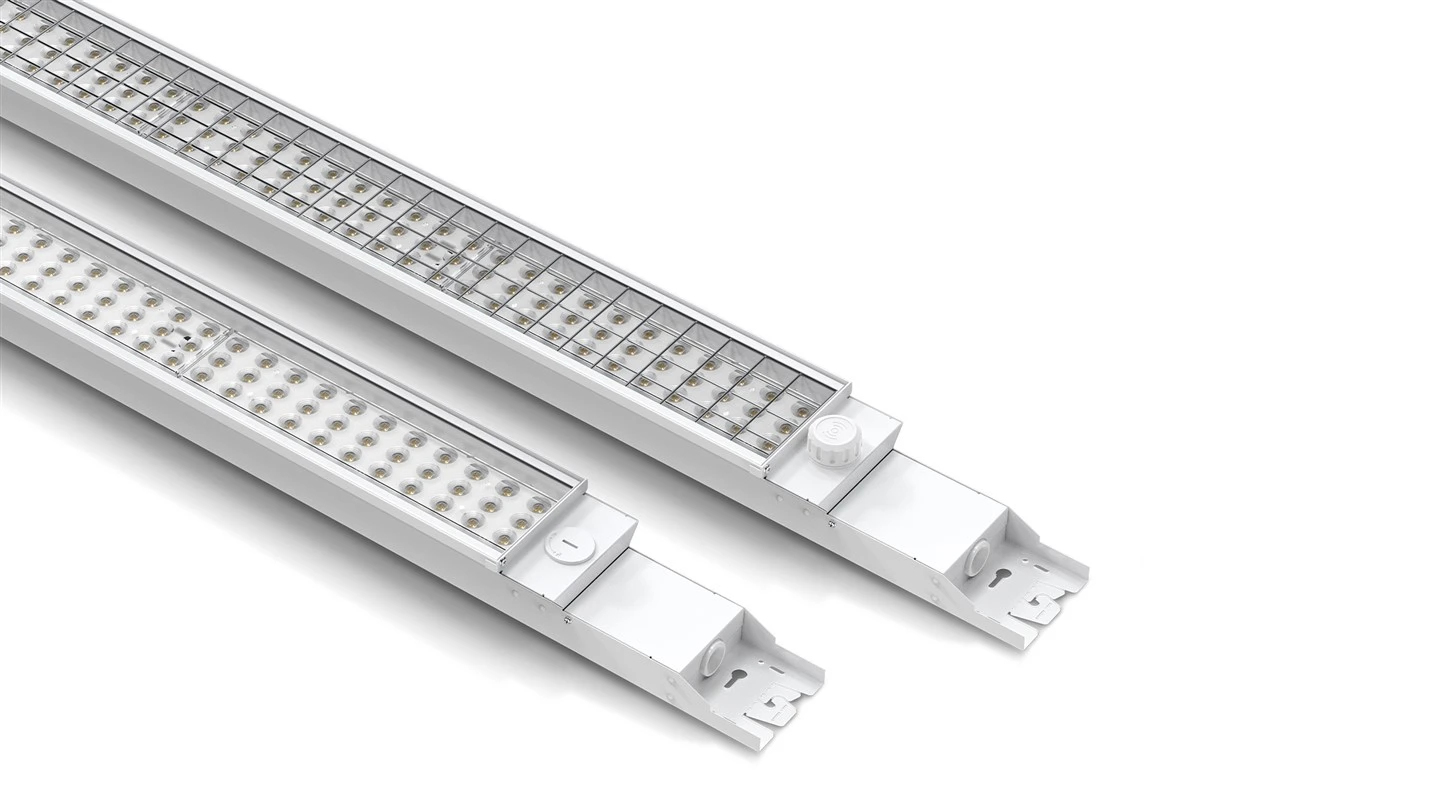

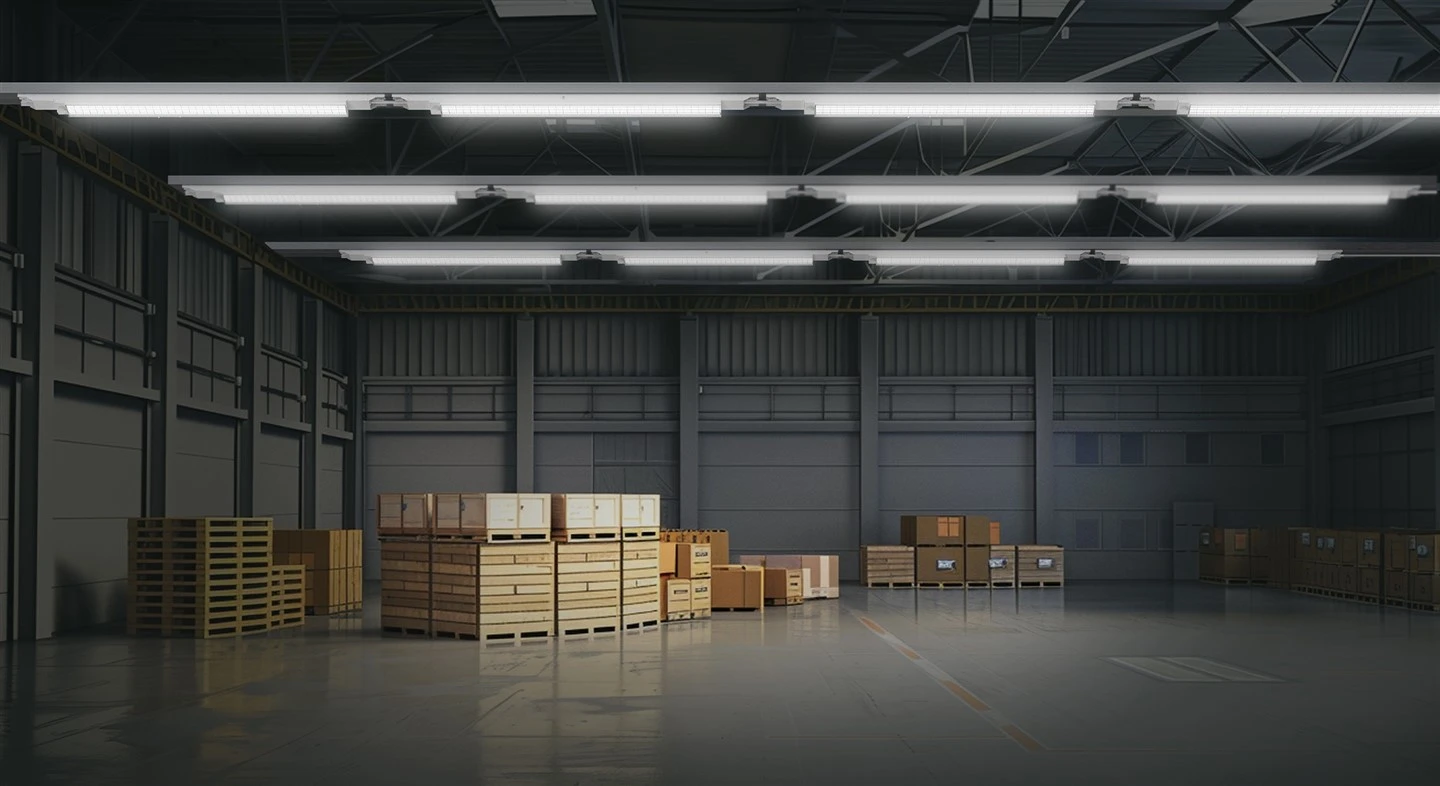

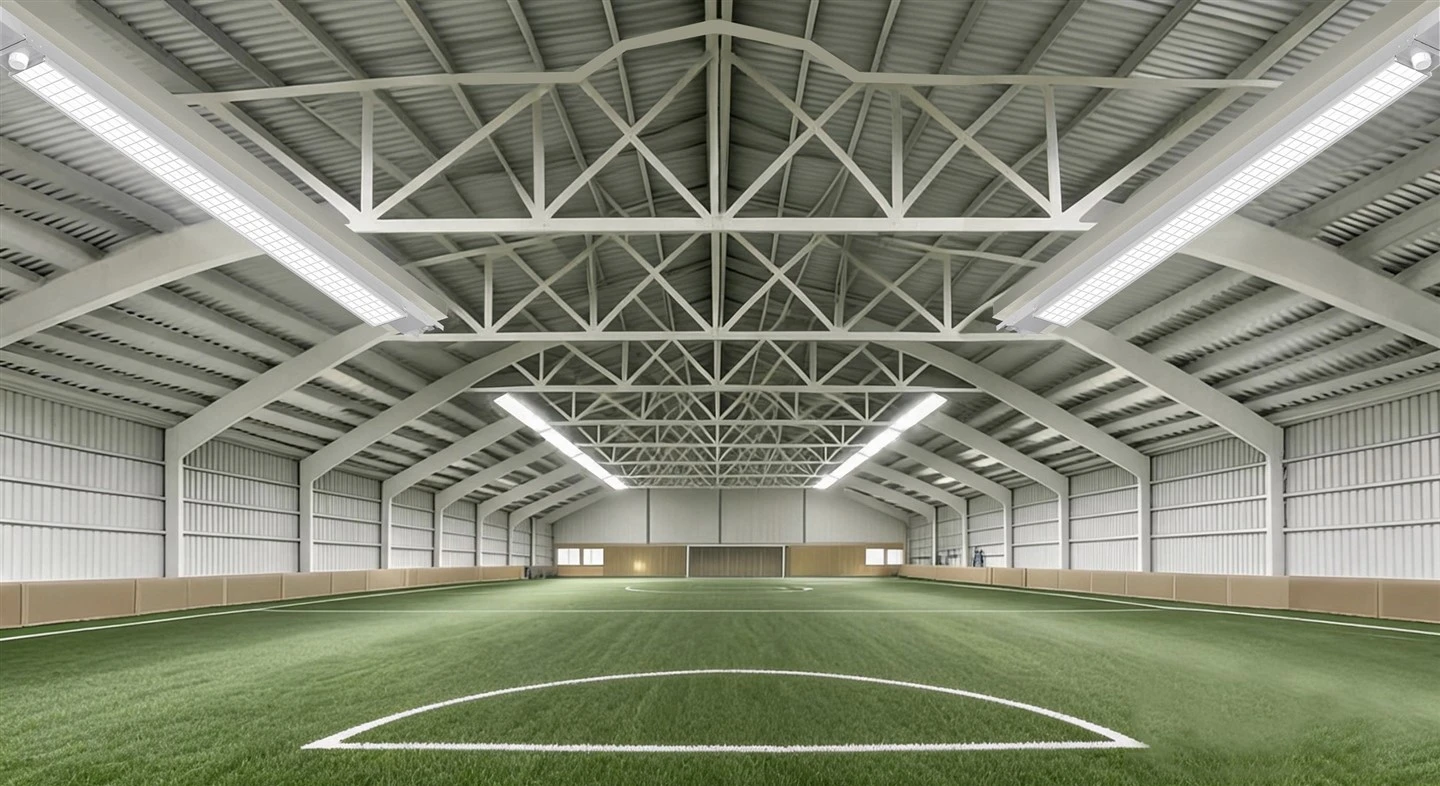

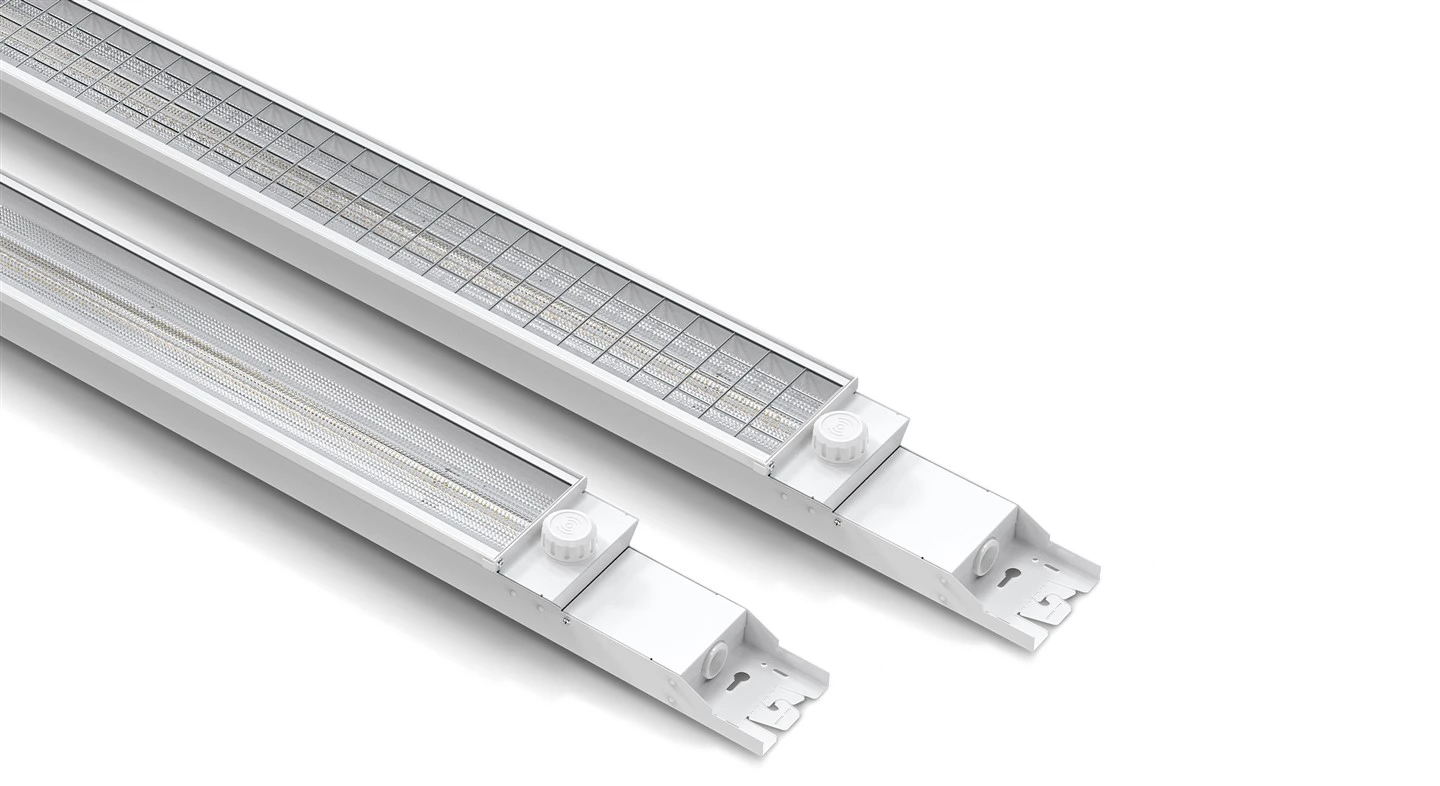

Nord Line ass mat enger flexibeler Funktioun a genauer Liichtverdeelung entworf. Et kënnt mat enger Lens an enger prismatescher Versioun mat engem Scharnéierdesign.Nord Line verschidde Strahlwinkeloptiounen maachen et méiglech fir verschidden Héicht Industrie Uwendungen aus 4-20meter ze installéieren. D'Gitter mécht d'Nord Linn mat IK10 Schutz fir Ball Beweis, Wat maachen d'Nord Linn fir méi industriell a Sport Uwendungen benotzt ginn.

Feature:

>Bis zu 180 LM/W

>5 CCT a Watt justierbar

>LED Modul a Chauffer verännerbar

>Plug and Play Sensor Modul

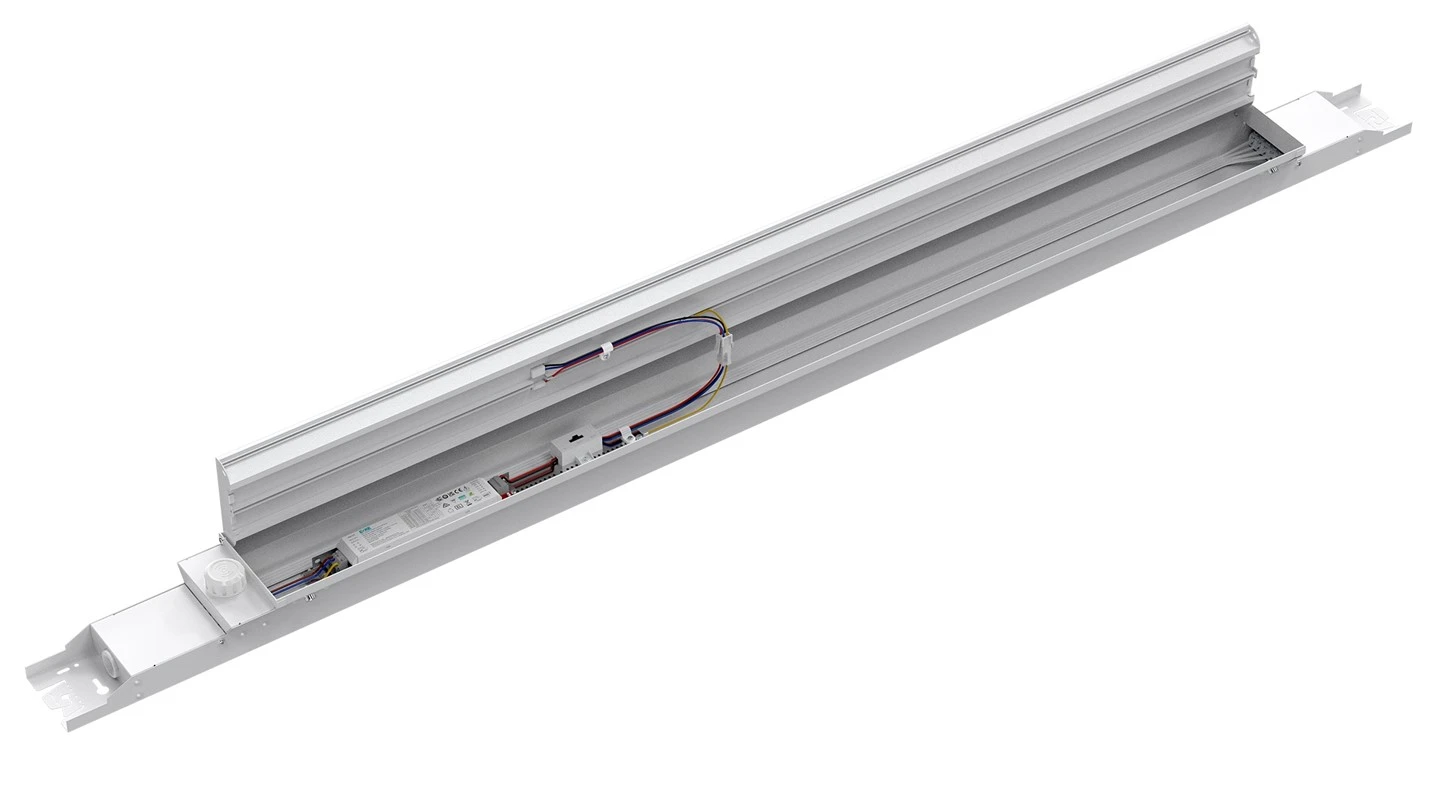

>Scharnier Design

>IP23 / IK08 ODER IK10

>7 Joer Garantie

Send Inquiry

Download

Description

Technical Parameters

Liicht Moudle	Bestellung Code	Lenth	Bewäert Kraaft	LM/W	CRI	SDCM	Produit Dimensioun (MM)
Lens	NL100-04W-DT1-80F01	1256 mm	60-65-75-80W	30 Grad 180-190lm/w 60 Grad 185-195lm/w 90 Grad 180-190lm/w	Ra>80	<3	L1256xW105xH60
Lens	NL100-04W-DT1-75D01	1256 mm	60-65-75-80W	30 Grad 180-190lm/w 60 Grad 185-195lm/w 90 Grad 180-190lm/w	Ra>80	<3	L1256xW105xH60
Lens	NL100-05W-DT1-10F01	1550 mm	70-80-90-100W	30 Grad 180-190lm/w 60 Grad 185-195lm/w 90 Grad 180-190lm/w	Ra>80	<3	L1550xW105xH60
Lens	NL100-05W-DT1-10D01	1550 mm	70-80-90-100W	30 Grad 180-190lm/w 60 Grad 185-195lm/w 90 Grad 180-190lm/w	Ra>80	<3	L1550xW105xH60
Lens	NL100-05W-DT1-12F01	1844 mm	65-85-100-120W	30 Grad 180-190lm/w 60 Grad 185-195lm/w 90 Grad 180-190lm/w	Ra>80	<3	L1844xW105xH60
Lens	NL100-05W-DT1-12D01	1844 mm	65-85-100-120W	30 Grad 180-190lm/w 60 Grad 185-195lm/w 90 Grad 180-190lm/w	Ra>80	<3	L1844xW105xH60
Prismatic V Optik	NL110-04W-DT1-80F01	1256 mm	60-65-75-80W	typ. 165LM/W	Ra>80	<3	L1256xW105xH60
Prismatic V Optik	NL110-04W-DT1-75D01	1256 mm	60-65-75-80W	typ. 165LM/W	Ra>80	<3	L1256xW105xH60
Prismatic V Optik	NL110-05W-DT1-10F01	1550 mm	70-80-90-100W	typ. 165LM/W	Ra>80	<3	L1550xW105xH60
Prismatic V Optik	NL110-05W-DT1-10D01	1550 mm	70-80-90-100W	typ. 165LM/W	Ra>80	<3	L1550xW105xH60
Prismatic V Optik	NL110-05W-DT1-12F01	1844 mm	65-85-100-120W	typ. 165LM/W	Ra>80	<3	L1844xW105xH60
Prismatic V Optik	NL110-05W-DT1-12D01	1844 mm	65-85-100-120W	typ. 165LM/W	Ra>80	<3	L1844xW105xH60

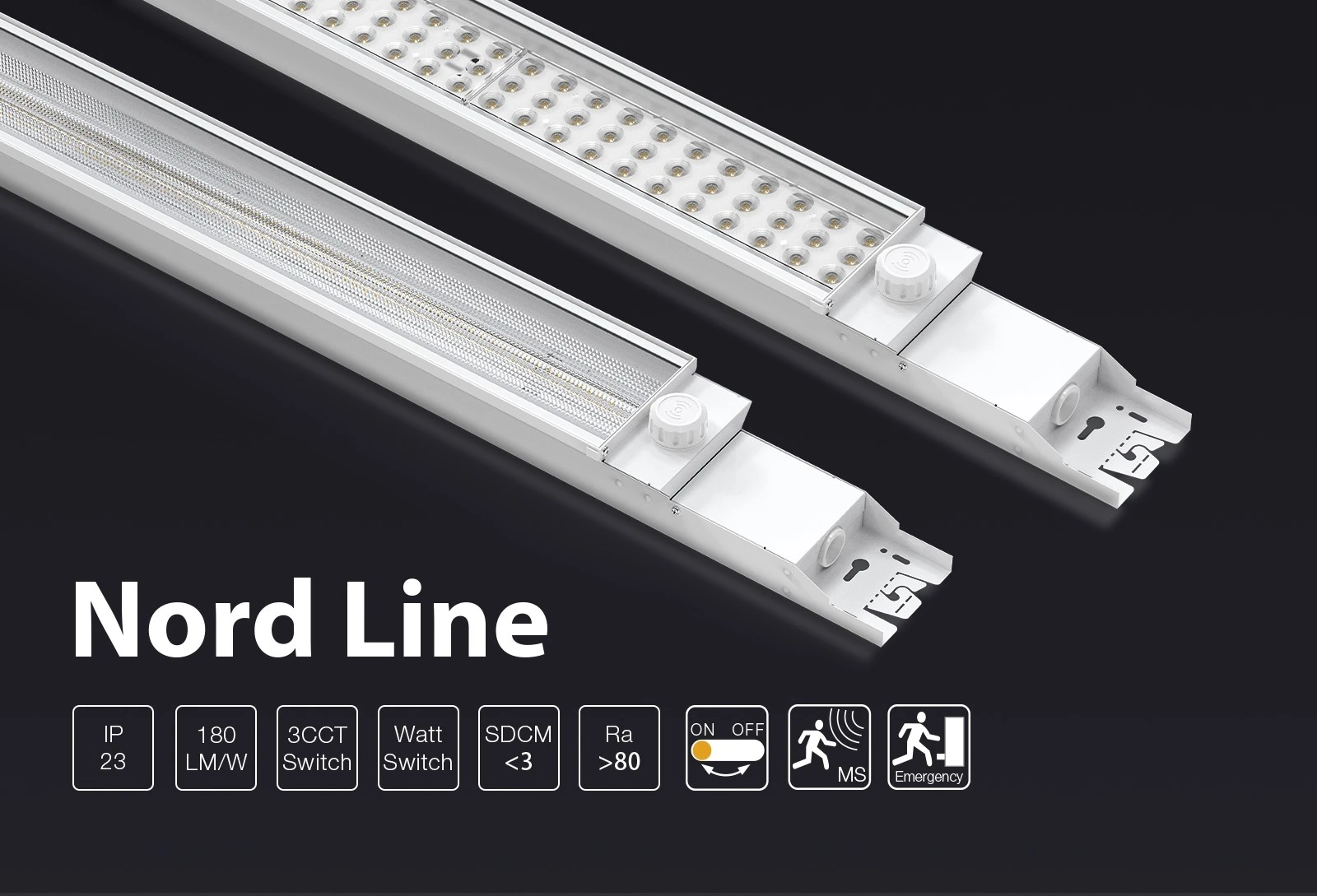

Nord-Line01

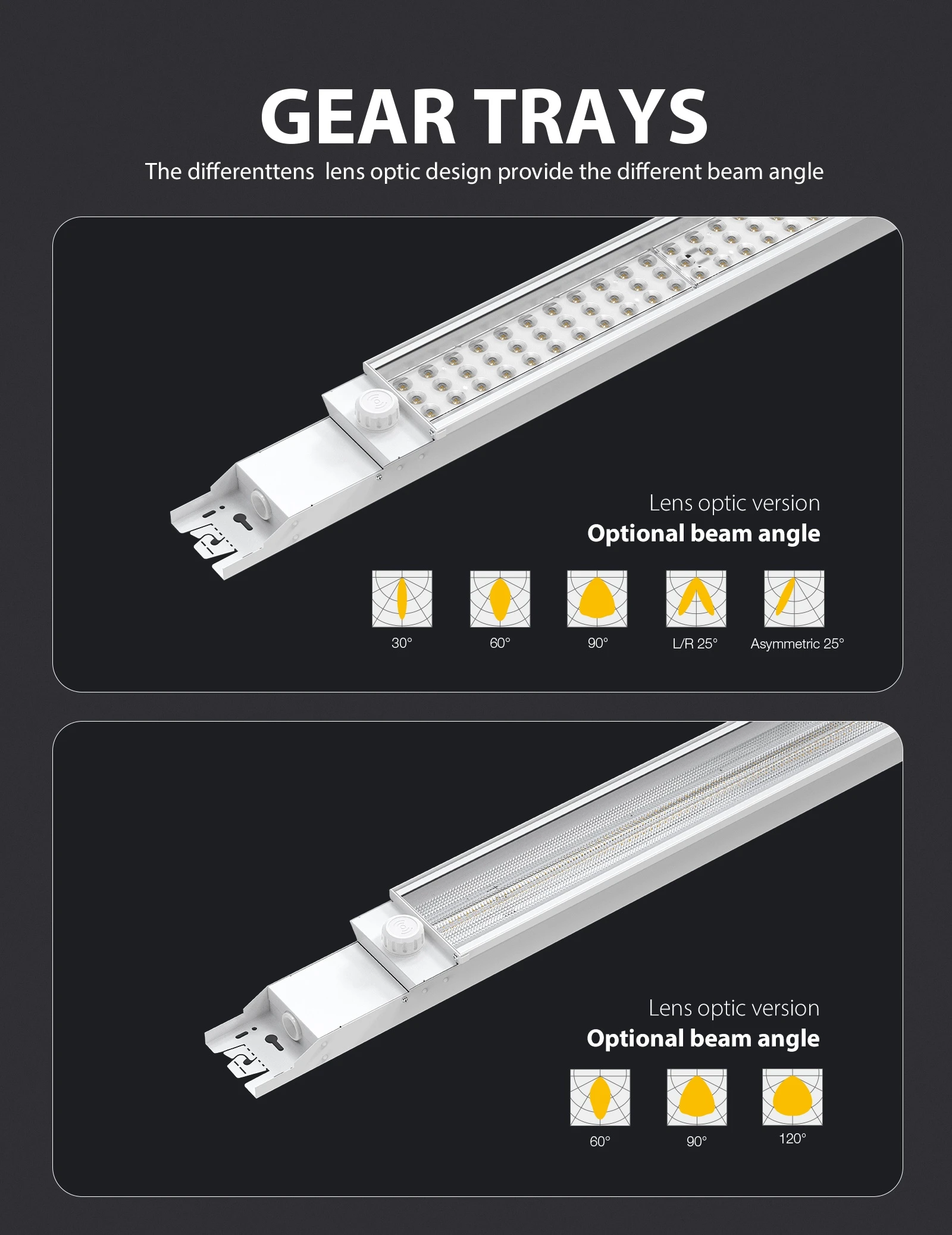

Nord-Line02

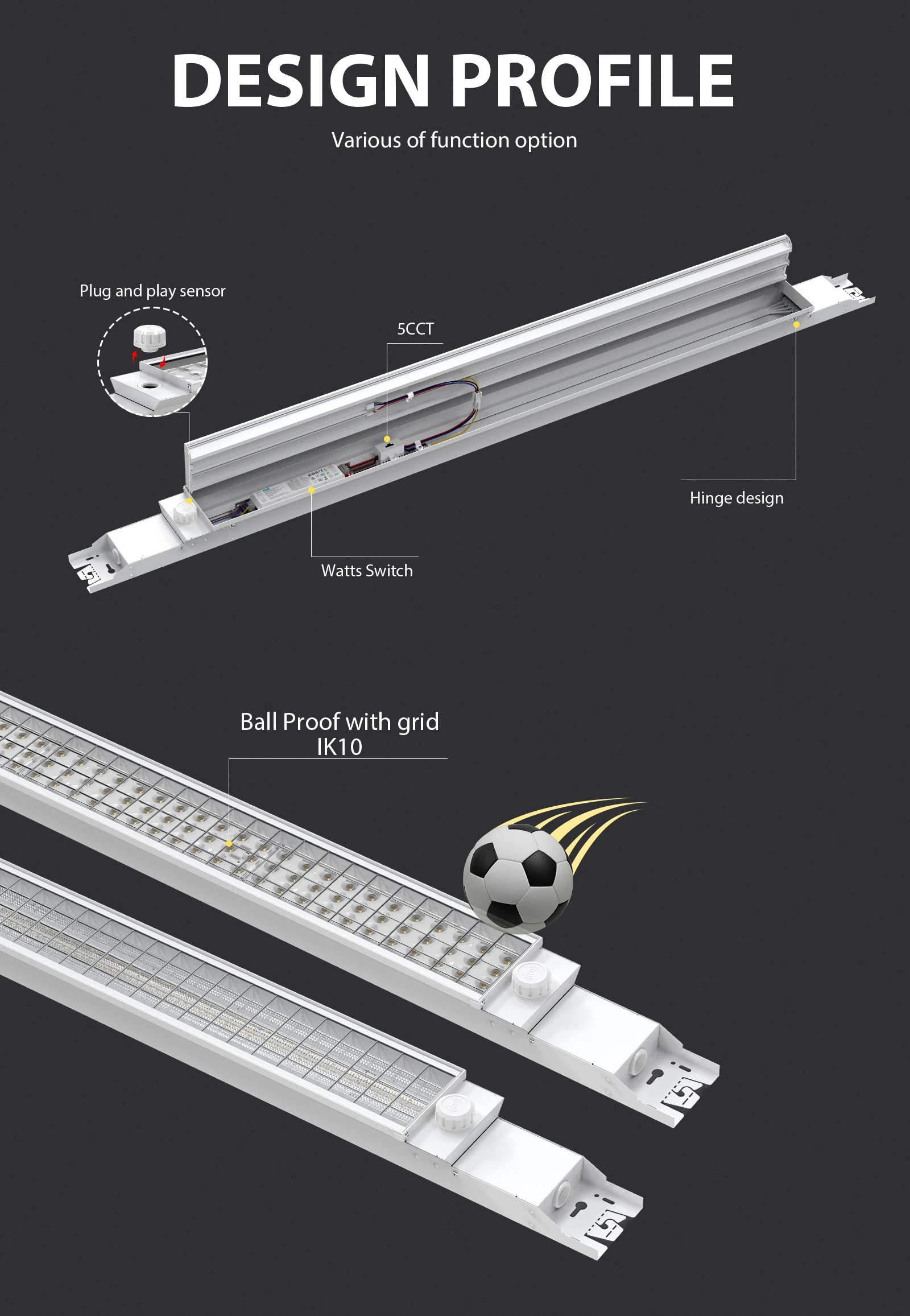

Nord-Line03

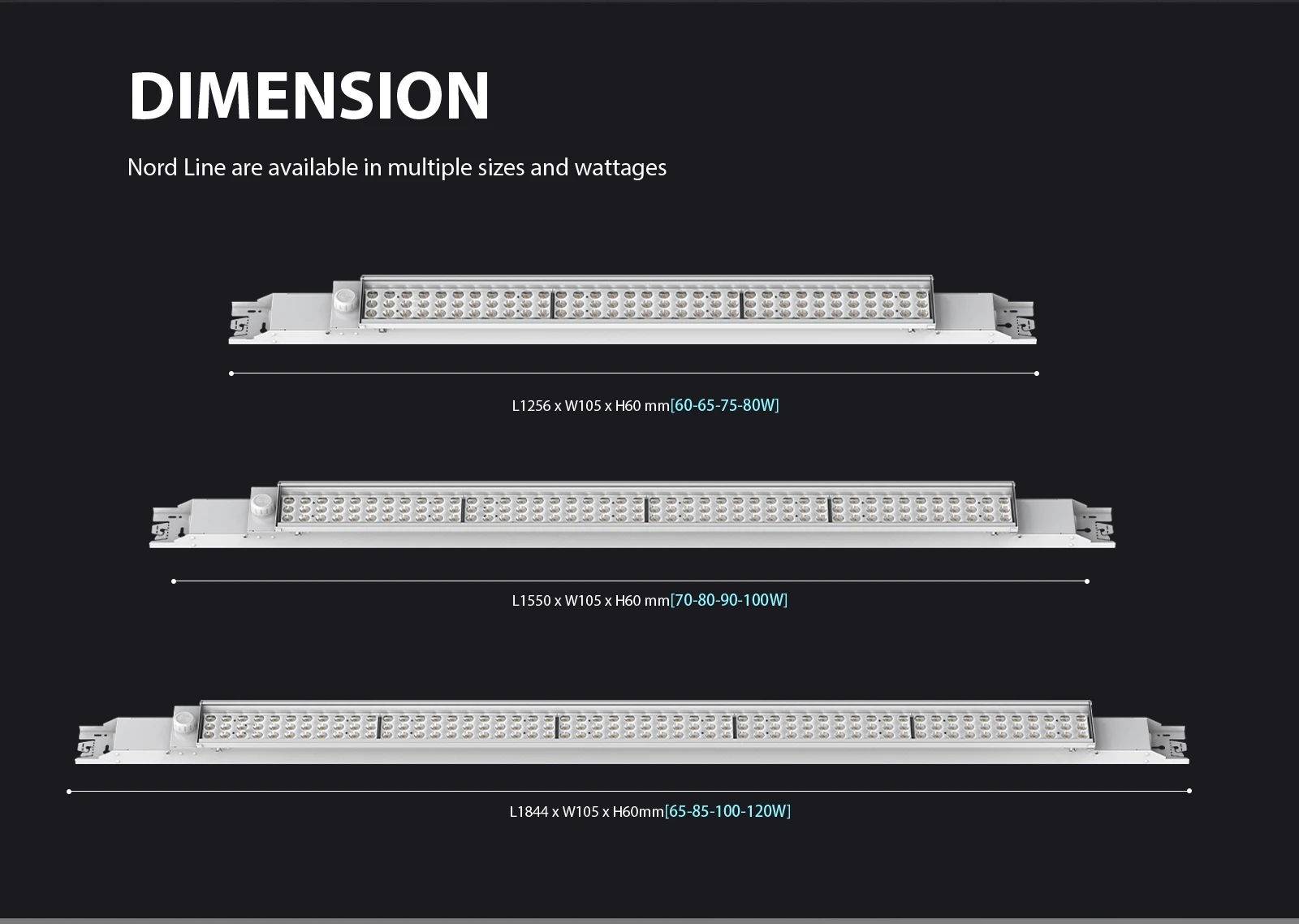

Nord-Line04

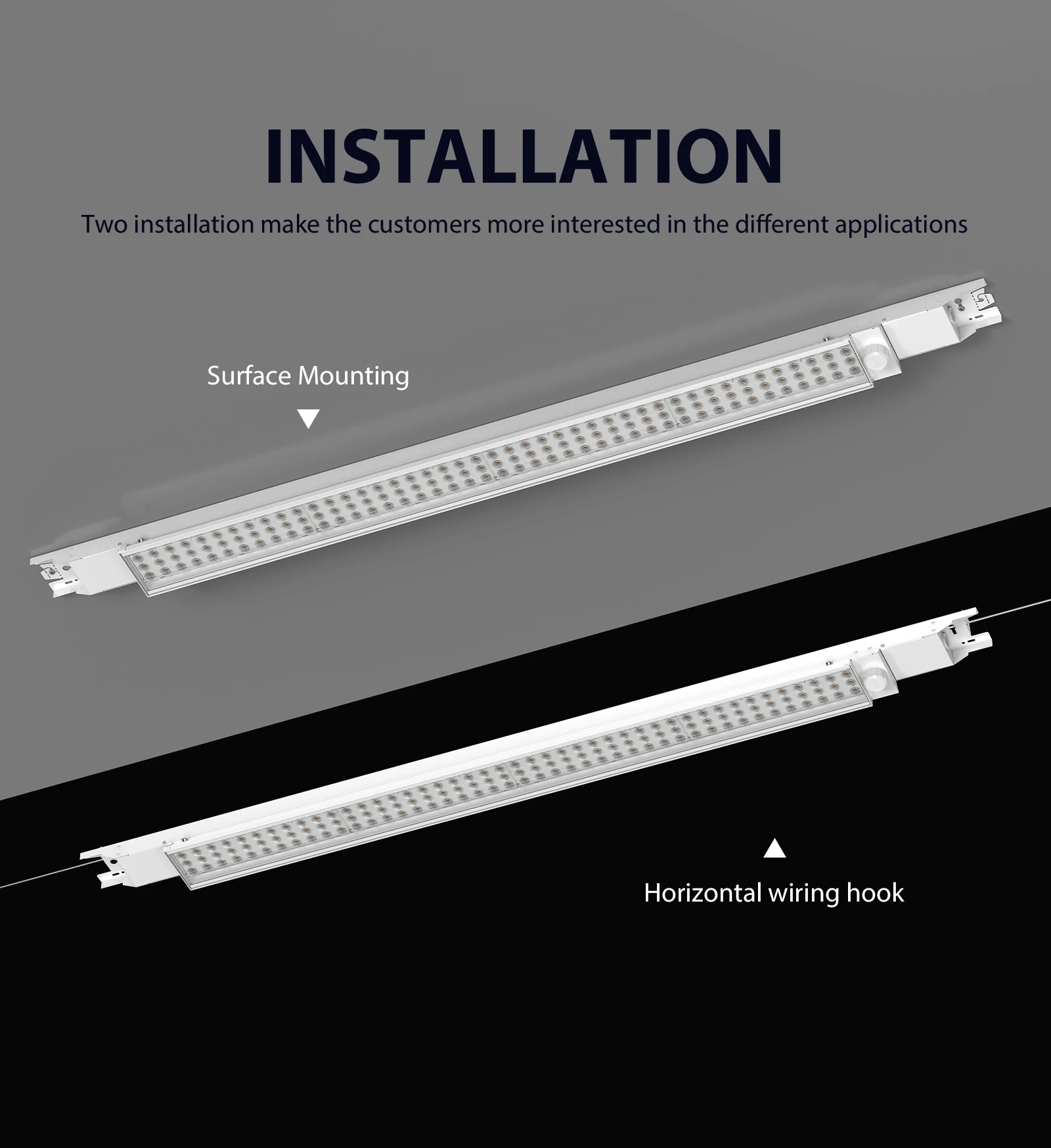

Nord-Line05
