UNI Flex System

UNI Flex System

Beschreiwung:

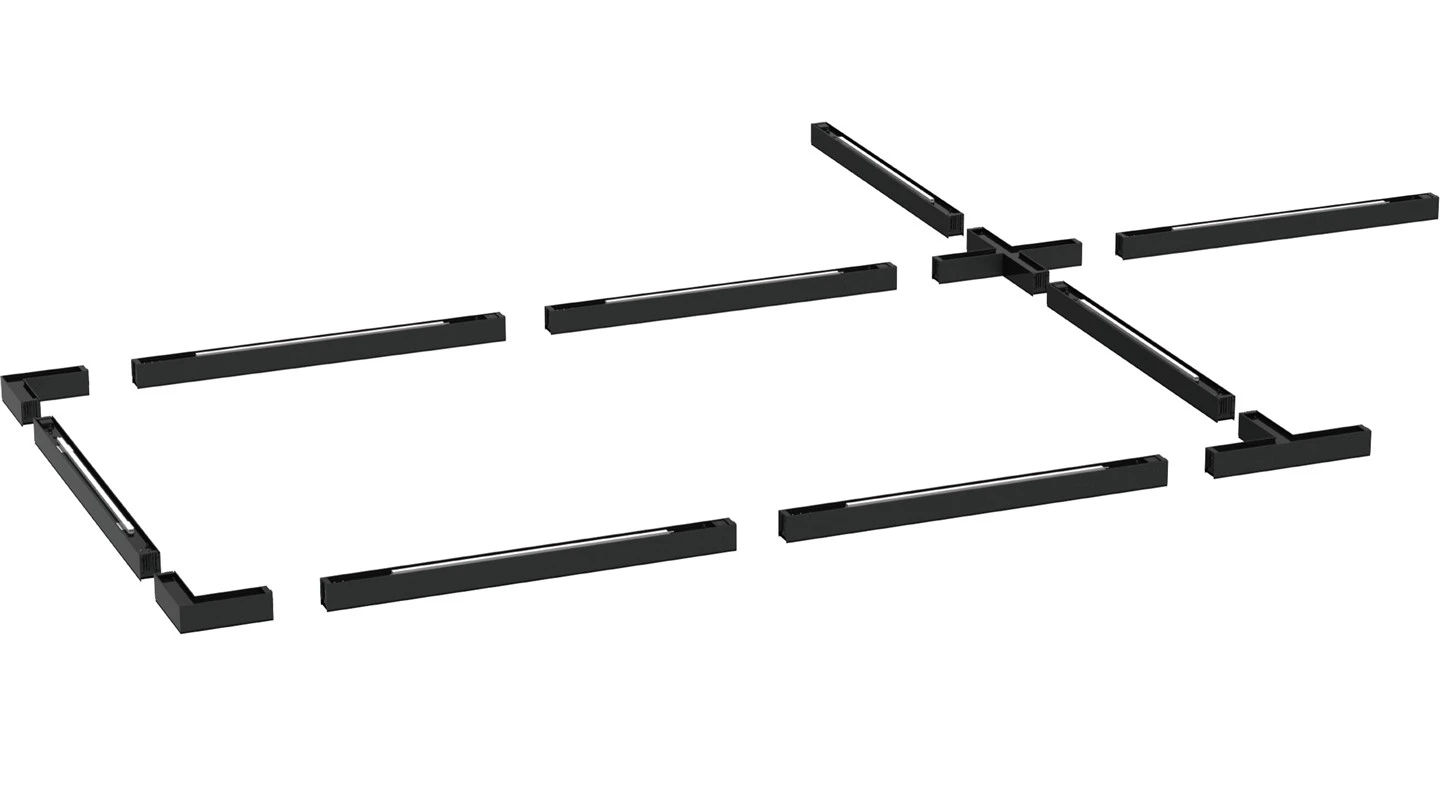

UNI flex System ass e modernt designt Splicing linear Liicht. D'Designidee kënnt aus dem Mainstreaming vun haut moderner Beliichtung. Also, et gëtt vill vu Clienten a kommerziell / Büro an aner verschidde Beliichtungsapplikatiounen benotzt.UNI Flex Systemer kënne multiple -verlinkt ginn duerch riichtaus/L/R/X/T verschidde Richtungen mam Node Connector ouni Spalt tëscht dem Beliichtungsmodul. D'flexibel PC Cover mécht den Uewen Beliichtung no de Link. Dës speziell Funktiounen maachen den Uni Flex System ëmmer méi populär am LED Beliichtungsfeld.









Feature:

>Verschidde vu verschiddene Beliichtung Modul

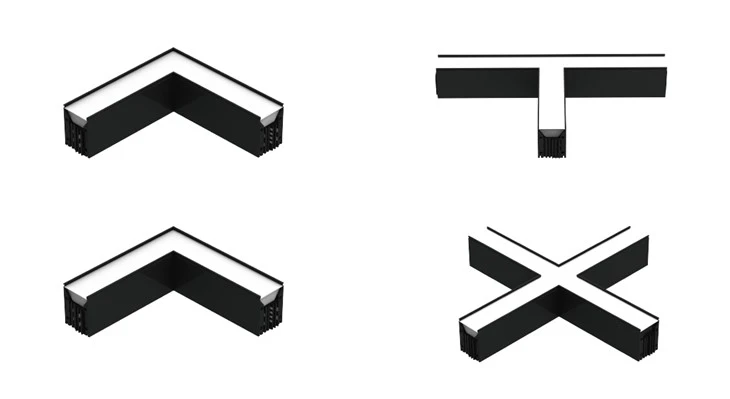

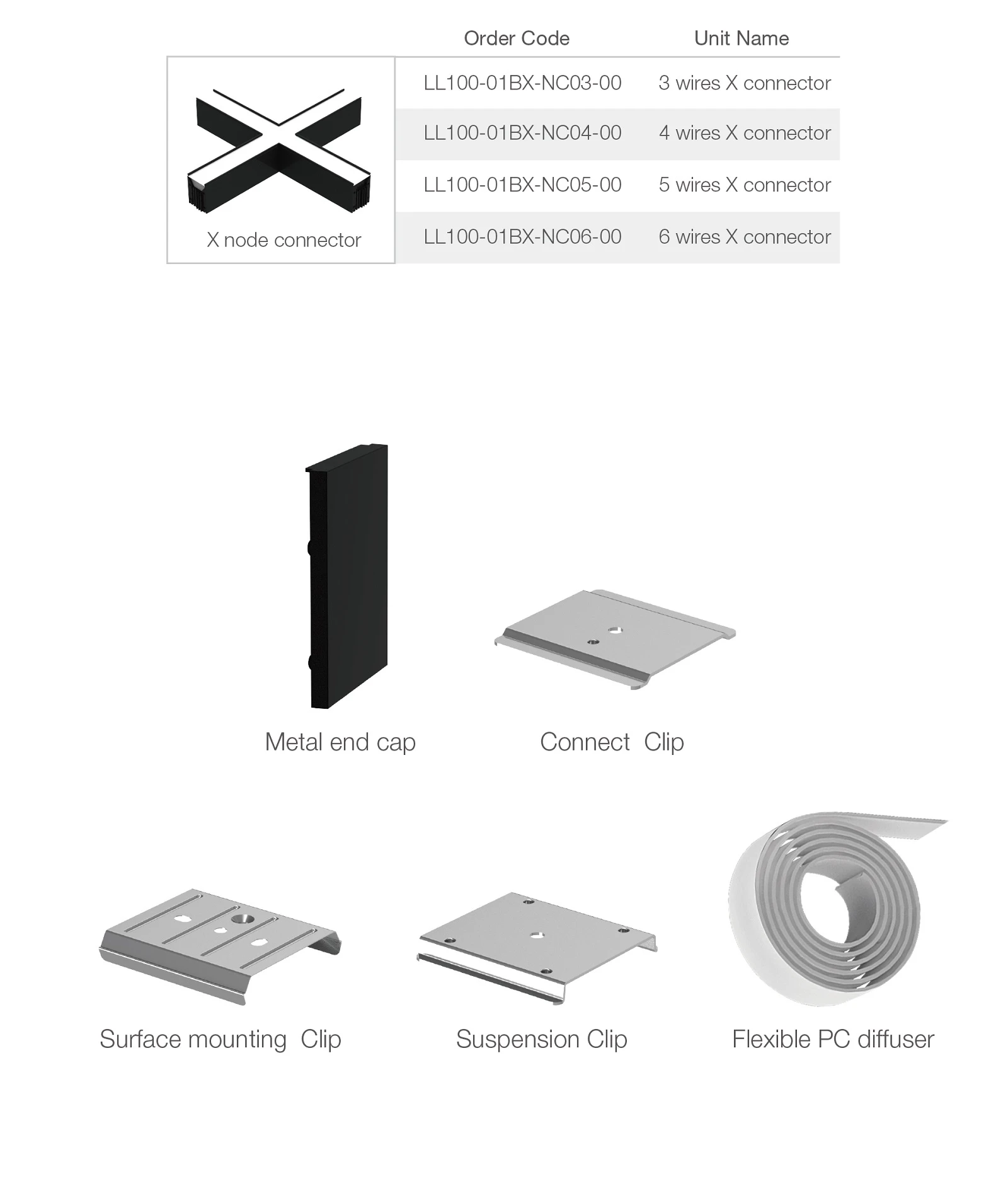

>Riichtaus / L / R / T / X Node conector fir Multiple Link

>Felxible PC Cover fir Uewen Liicht no Multiple Link

>Verschidde Mark Chauffer fir Optioun

>CCT a Wattschalter als Optiounen

Send Inquiry
Download
Description
Technical Parameters

Aféierung:

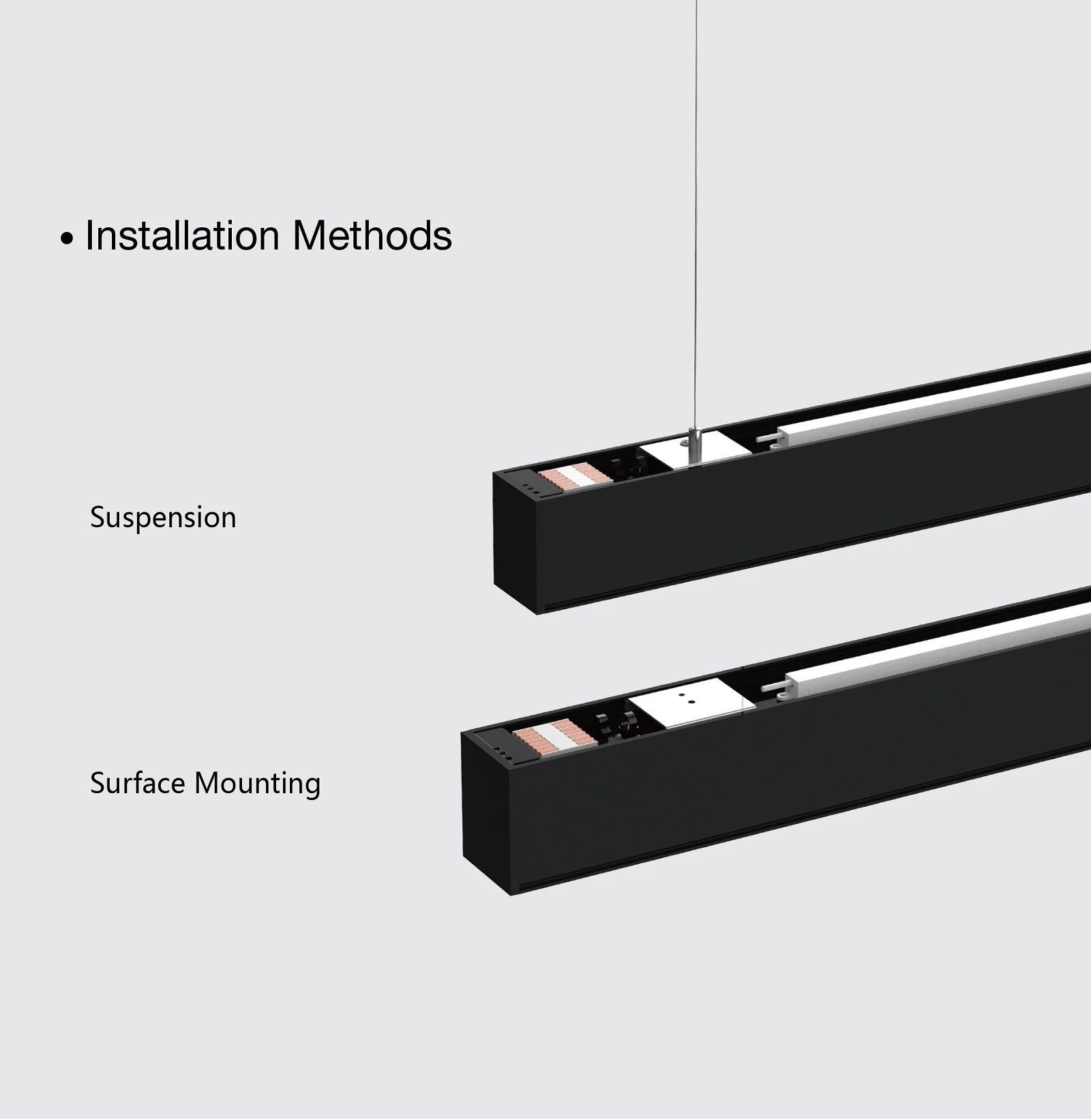

UNI Flex kann agebaute linear Beliichtung, suspendéiert linear Luuchten, Uewerfläch montéiert linear Luuchten, Streckbeleuchtung, an och eng konnektbar entworf LED Beliichtung sinn. Et huet verschidde Beliichtungsoptiounen, Installatiounen a verschidde Verbindungen ouni Limit op déi maximal Verbindungslängt. Déi verschidde Fonctiounen uewen ernimmt maachen UNI Flex linear ganz modern a vill an Büro Beliichtung benotzt, kommerziell Beliichtung, Handel Beliichtung, etc. Wéi wäit soll d'Distanz tëscht linear Luuchten ginn? Dir sollt eis UNI Flex kucken, déi keng Verbindungslimit huet.



Diffuser

UGR

Bestellung Code

Bewäert Kraaft

LM/W

Lumen

SDCM/Ra

IP Klass

Produit Dimensioun

Funktioun

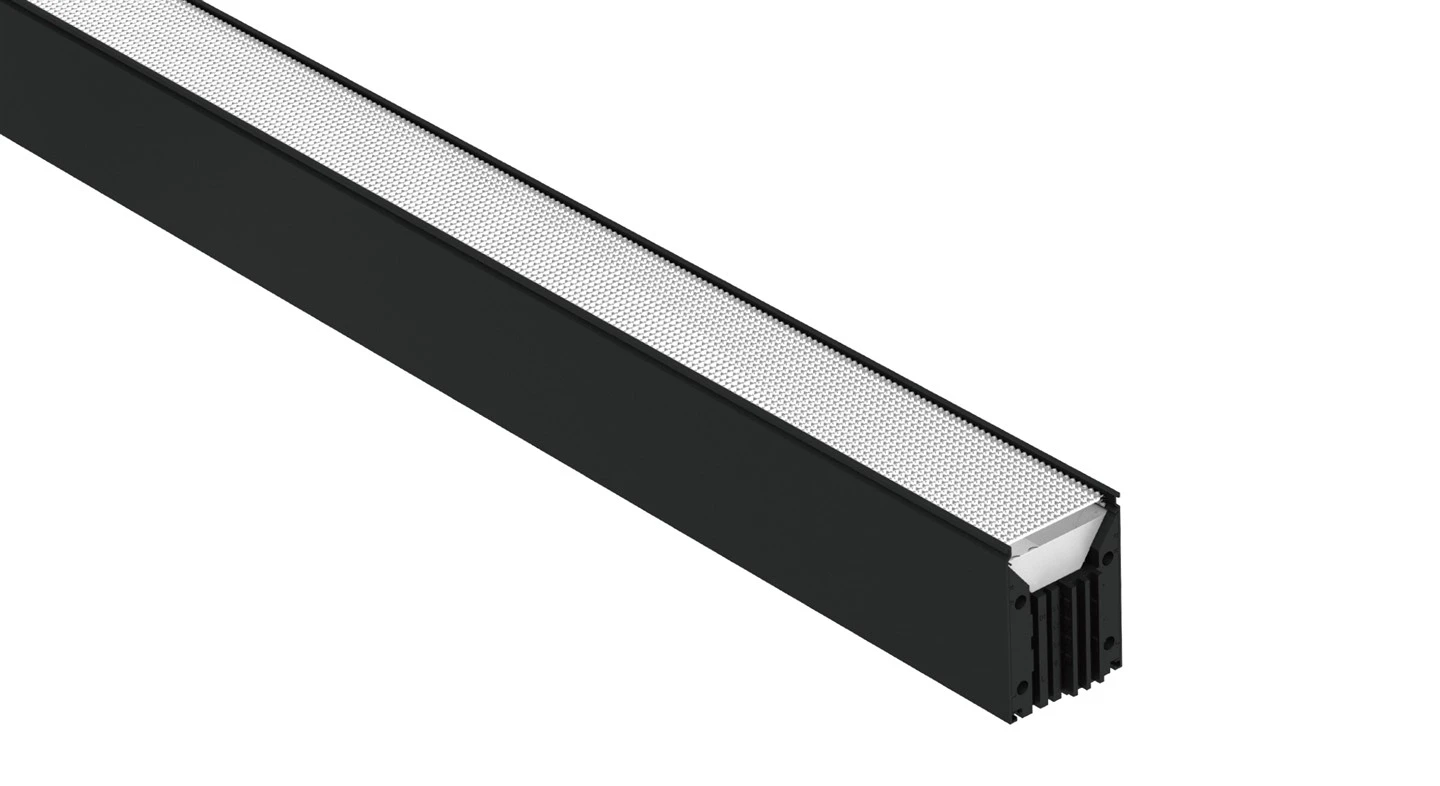

Prismatesch

UGR
<22

LL400-04B-AT1-40F01

20-40W

Typ.130

Typ.2600-5200

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

AN -OFF

Prismatesch

UGR
<22

LL400-04B-AT1-40V01

20-40W

Typ.130

Typ.2600-5200

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

PWM (fir MS)

Prismatesch

UGR
<22

LL400-04B-AT1-40D01

20-40W

Typ.130

Typ.2600-5200

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

DALI

Prismatesch

UGR
<22

LL400-05B-AT1-50F01

30-50W

Typ.130

Typ.3900-6500

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

AN -OFF

Prismatesch

UGR
<22

LL400-05B-AT1-50V01

30-50W

Typ.130

Typ.3900-6500

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

PWM (fir MS)

Prismatesch

UGR
<22

LL400-05B-AT1-50D01

30-50W

Typ.130

Typ.3900-6500

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

DALI

Prismatesch

UGR
<22

LL400-06B-AT1-60F01

40-60W

Typ.130

Typ.5200-7800

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

AN -OFF

Prismatesch

UGR
<22

LL400-06B-AT1-60V01

40-60W

Typ.130

Typ.5200-7800

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

PWM (fir MS)

Prismatesch

UGR
<22

LL400-06B-AT1-60D01

40-60W

Typ.130

Typ.5200-7800

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

DALI

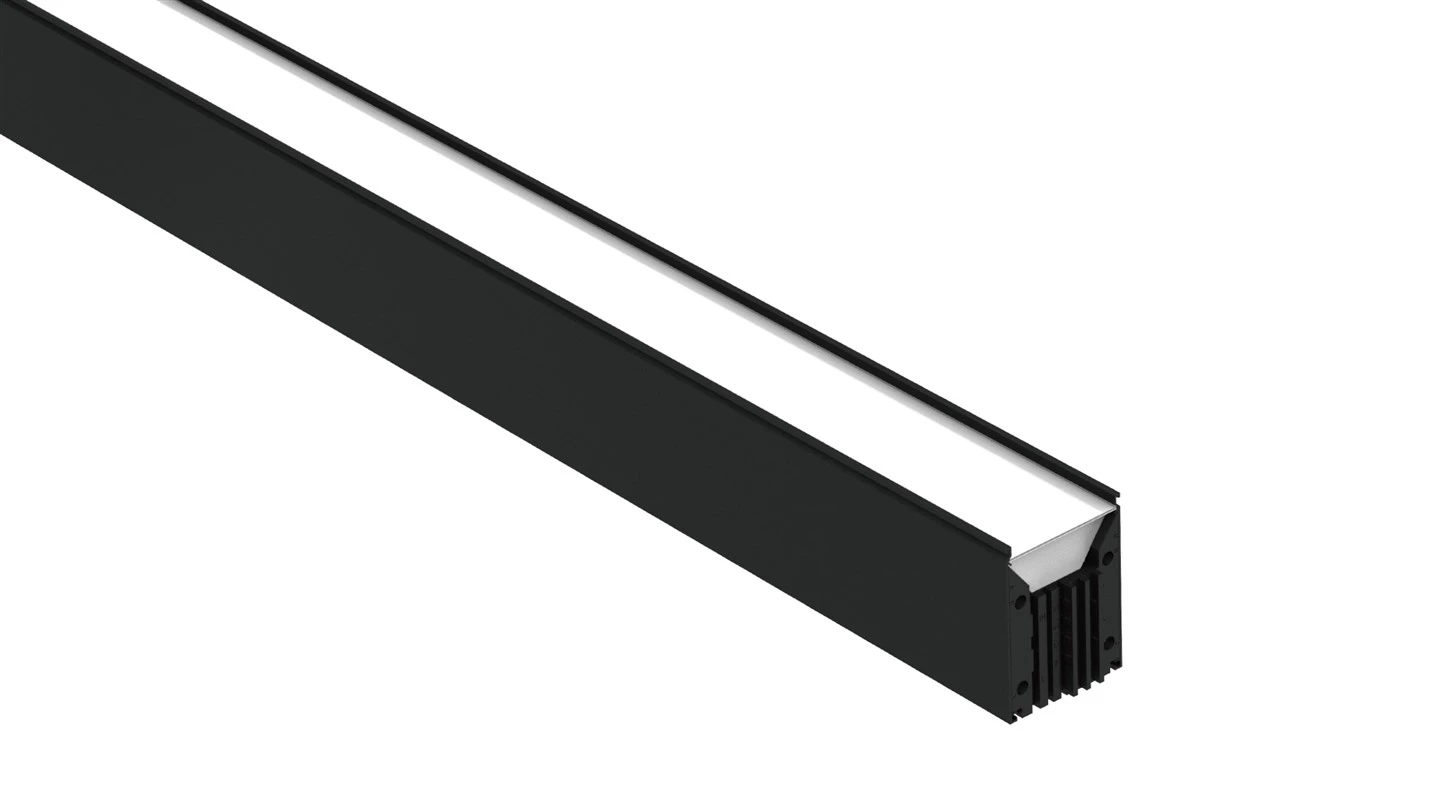

Opal

/

LL410-04B-AT1-40F01

20-40W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

AN -OFF

Opal

/

LL410-04B-AT1-40V01

20-40W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

PWM (fir MS)

Opal

/

LL410-04B-AT1-40D01

20-40W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

DALI

Opal

/

LL410-05B-AT1-50F01

30-50W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

AN -OFF

Opal

/

LL410-05B-AT1-50V01

30-50W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

PWM (fir MS)

Opal

/

LL110-05B-DT1-40D01

30-50W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

DALI

Opal

/

LL410-05B-AT1-50D01

40-60W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

AN -OFF

Opal

/

LL110-05B-DT1-40D01

40-60W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

PWM (fir MS)

Opal

/

LL110-05B-DT1-40V01

40-60W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

DALI

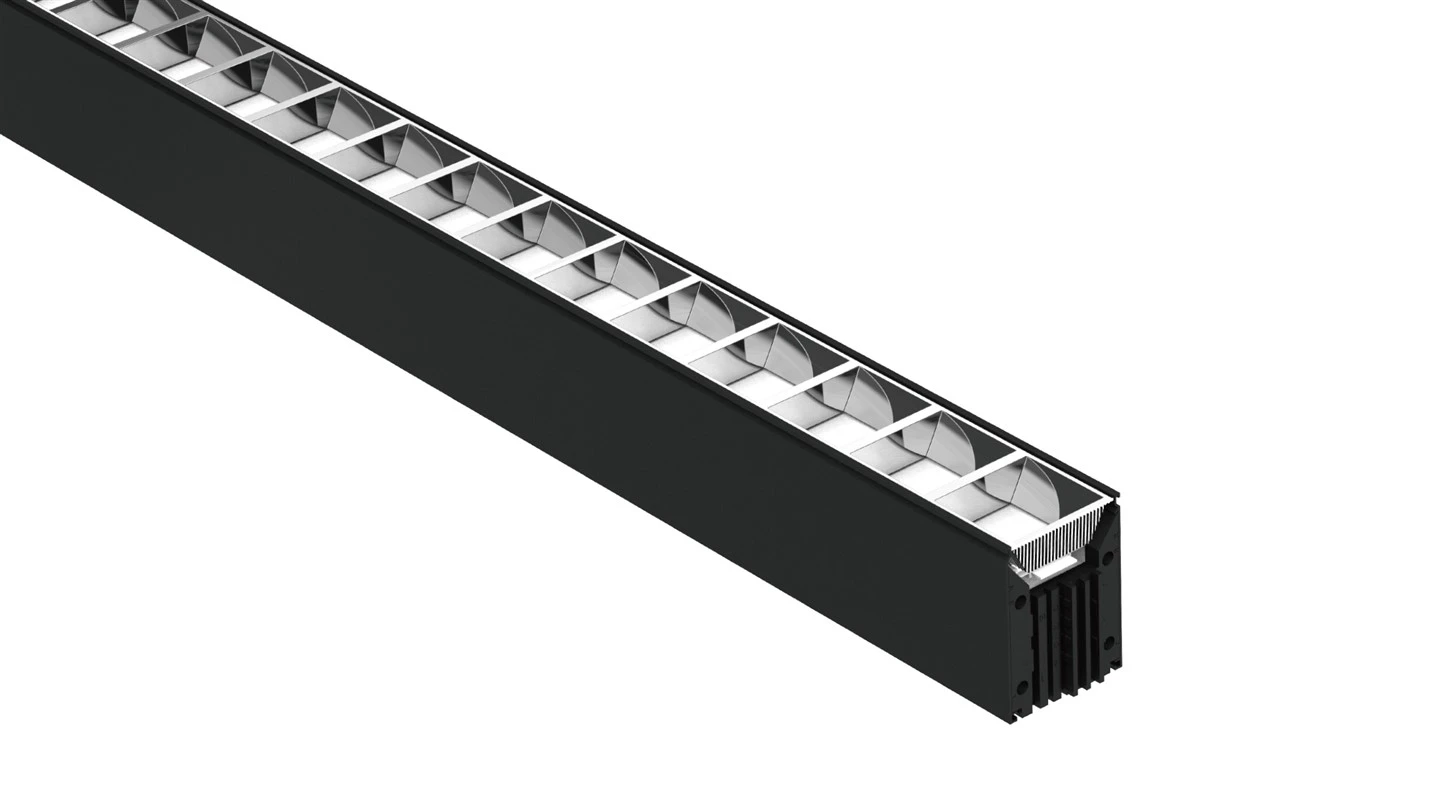

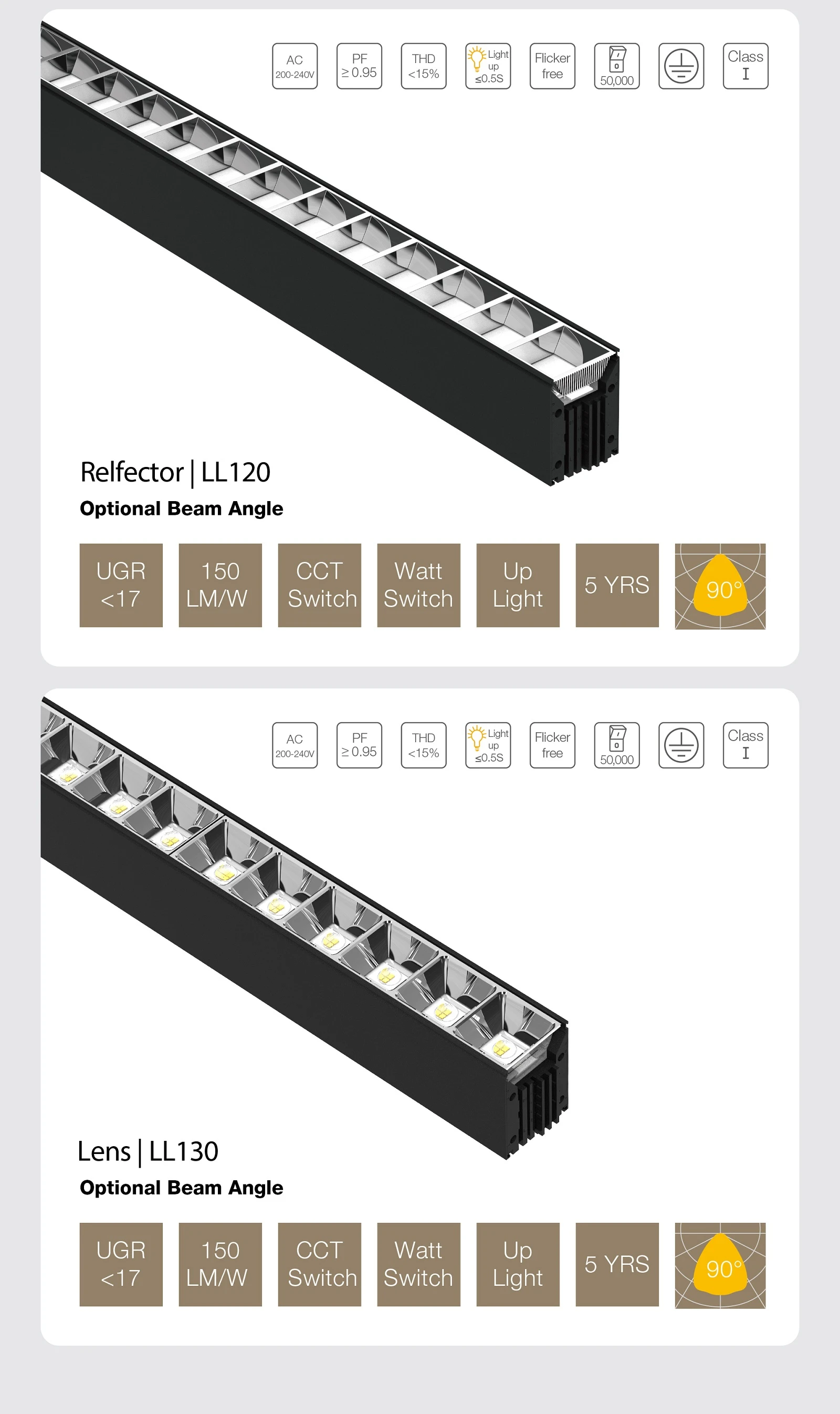

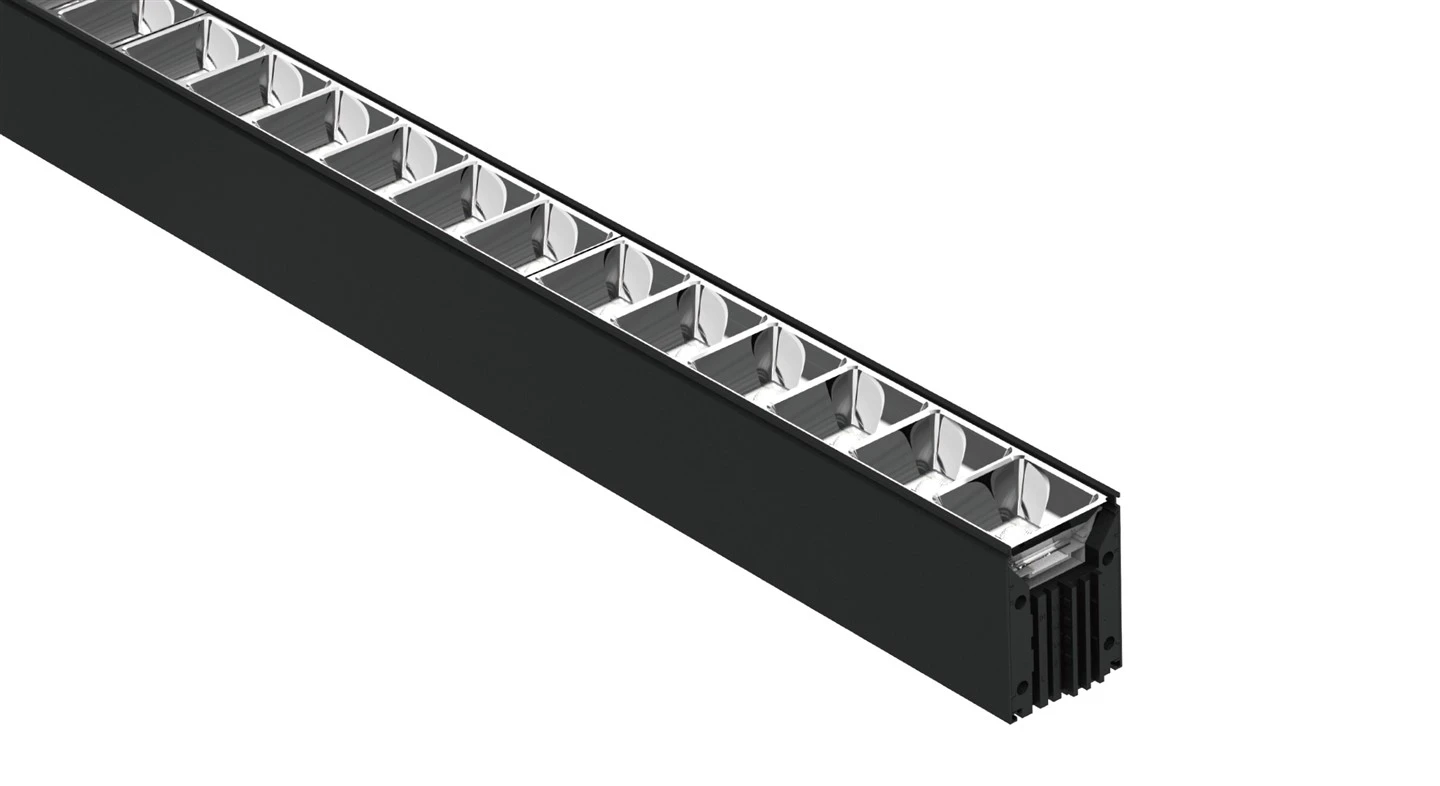

Reflektor

UGR
<17

LL420-04B-RT1-40F01

20-40W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

AN -OFF

Reflektor

UGR
<17

LL420-04B-RT1-40V01

20-40W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

PWM (fir MS)

Reflektor

UGR
<17

LL420-04B-RT1-40D01

20-40W

Typ.150

Typ.3000-6000

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

DALI

Reflektor

UGR
<17

LL420-05B-RT1-50F01

30-50W

Typ.150

Typ.4500-7500

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

AN -OFF

Reflektor

UGR
<17

LL420-05B-RT1-50V01

30-50W

Typ.150

Typ.4500-7500

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

PWM (fir MS)

Reflektor

UGR
<17

LL420-05B-RT1-50D01

30-50W

Typ.150

Typ.4500-7500

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

DALI

Reflektor

UGR
<17

LL420-06B-RT1-60F01

40-60W

Typ.150

Typ.6000-9000

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

AN -OFF

Reflektor

UGR
<17

LL420-06B-RT1-60V01

40-60W

Typ.150

Typ.6000-9000

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

PWM (fir MS)

Reflektor

UGR
<17

LL420-06B-RT1-60D01

40-60W

Typ.150

Typ.6000-9000

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

DALI

Lens

UGR
<14

LL430-04B-CT1-40F01

20-40W

Typ.160

Typ.3200-6400

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

AN -OFF

Lens

UGR
<14

LL430-04B-CT1-40V01

20-40W

Typ.160

Typ.3200-6400

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

PWM (fir MS)

Lens

UGR
<14

LL430-04B-CT1-40D01

20-40W

Typ.160

Typ.3200-6400

SDCM<3,<5/Ra80,90

IP 20

L1150xW60xH80

DALI

Lens

UGR
<14

LL430-05B-CT1-50F01

30-50W

Typ.160

Typ.4800-8000

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

AN -OFF

Lens

UGR
<14

LL430-05B-CT1-50V01

30-50W

Typ.160

Typ.4800-8000

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

PWM (fir MS)

Lens

UGR
<14

LL430-05B-CT1-50D01

30-50W

Typ.160

Typ.4800-8000

SDCM<3,<5/Ra80,90

IP 20

L1437xW60xH80

DALI

Lens

UGR
<14

LL430-06B-CT1-60F01

40-60W

Typ.160

Typ.6400-9600

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

AN -OFF

Lens

UGR
<14

LL430-06B-CT1-60V01

40-60W

Typ.160

Typ.6400-9600

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

PWM (fir MS)

Lens

UGR
<14

LL430-06B-CT1-60D01

40-60W

Typ.160

Typ.6400-9600

SDCM<3,<5/Ra80,90

IP 20

L1723xW60xH80

DALI

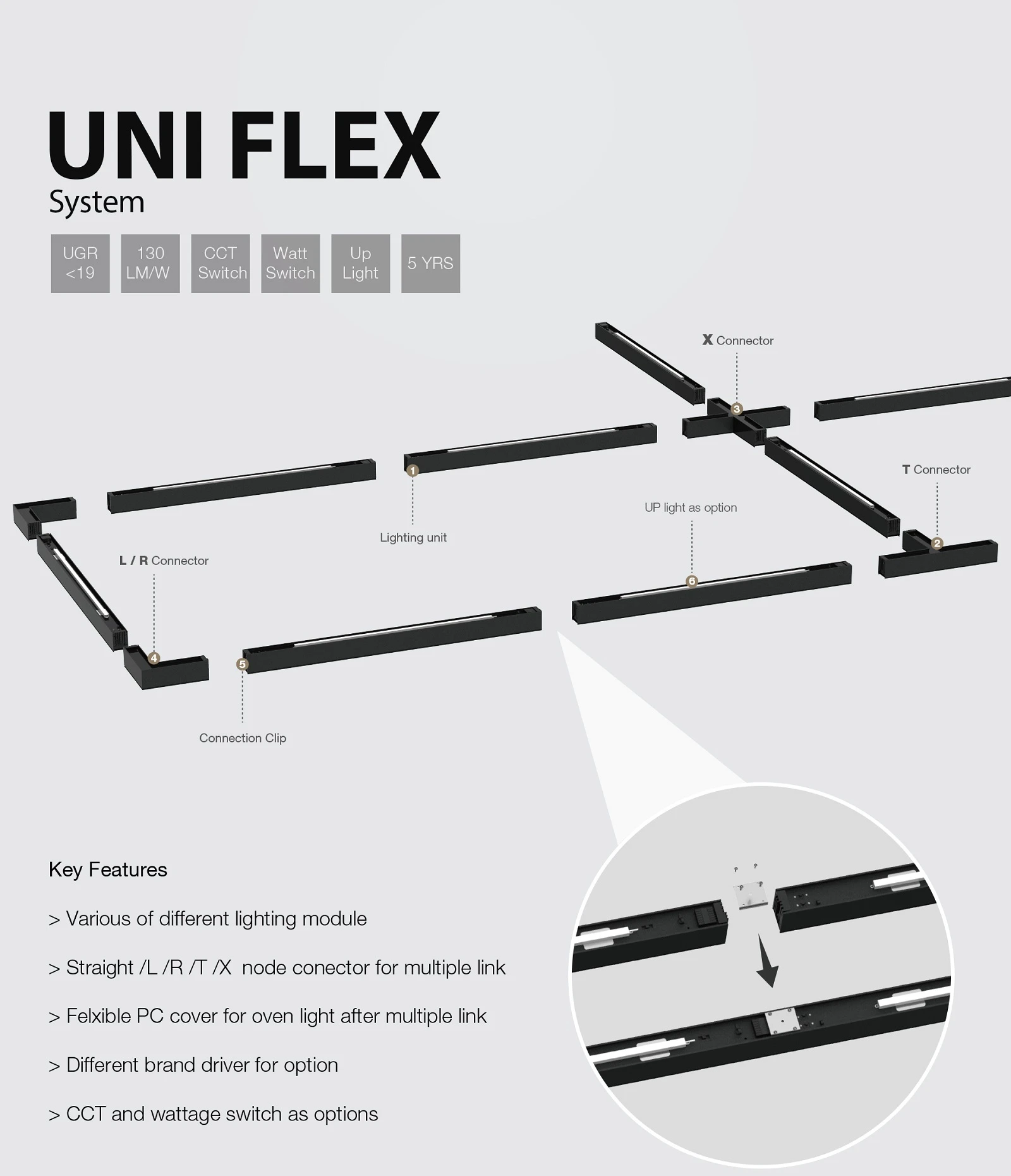

uniflex01

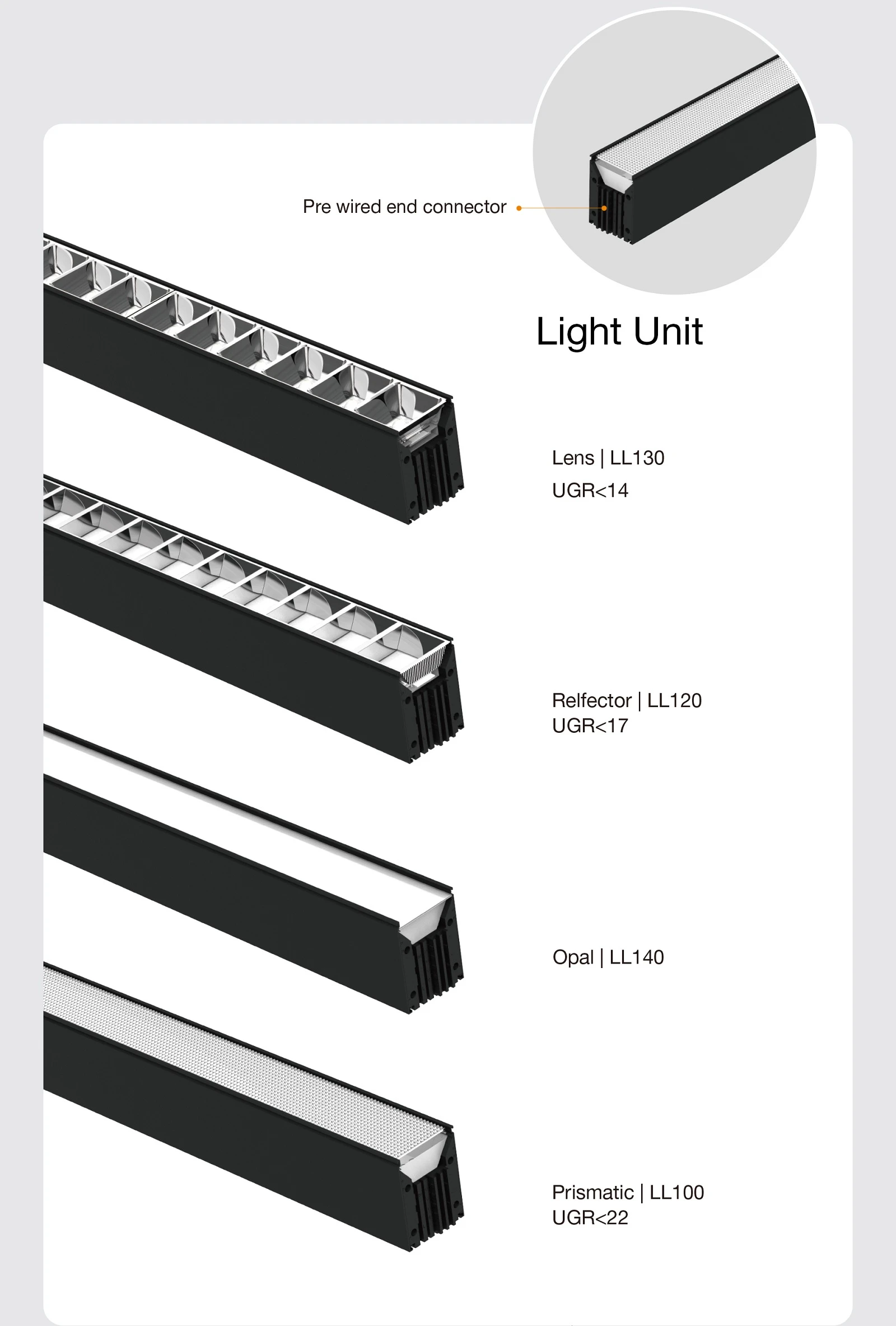

uniflex02

uniflex03

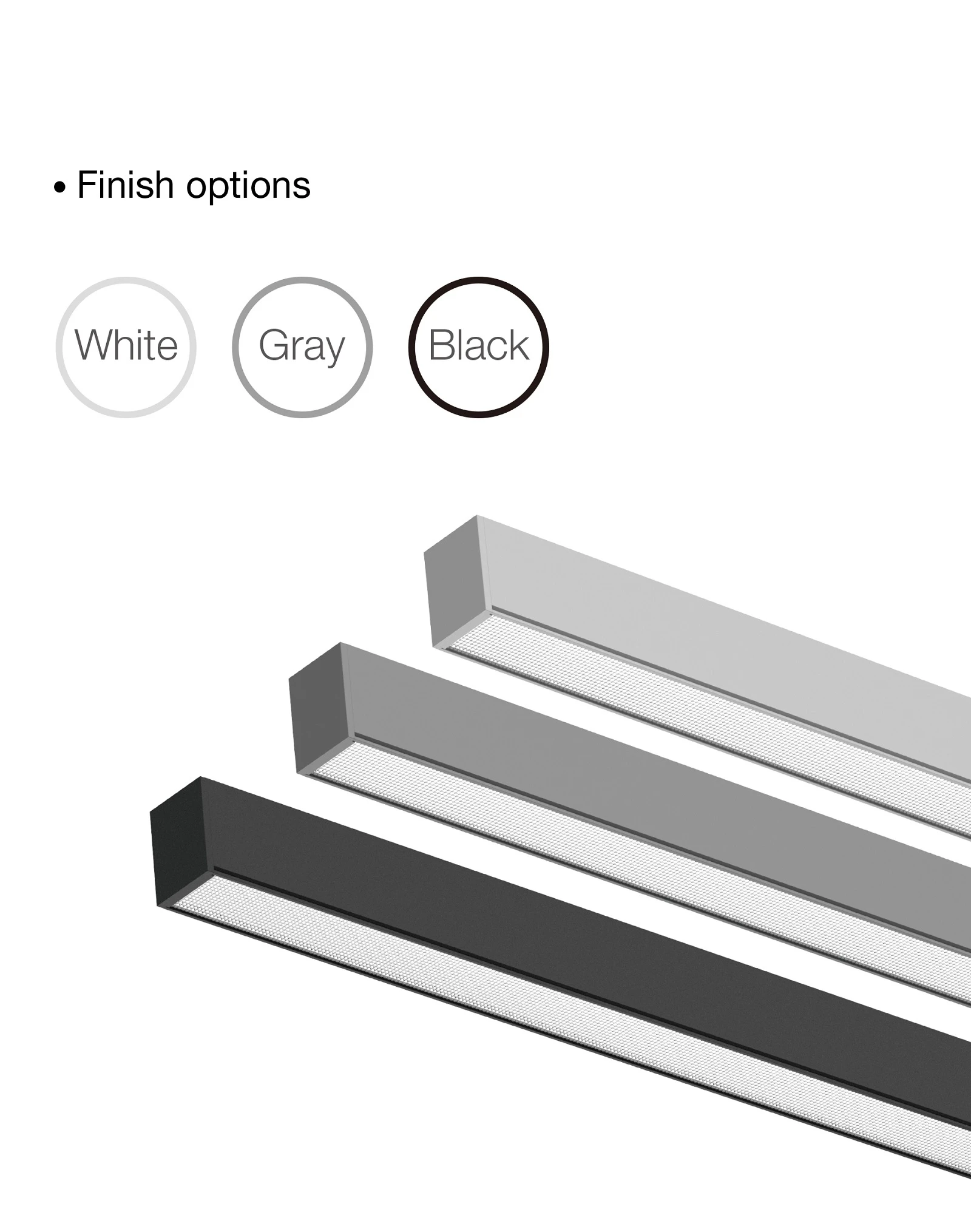

uniflex04

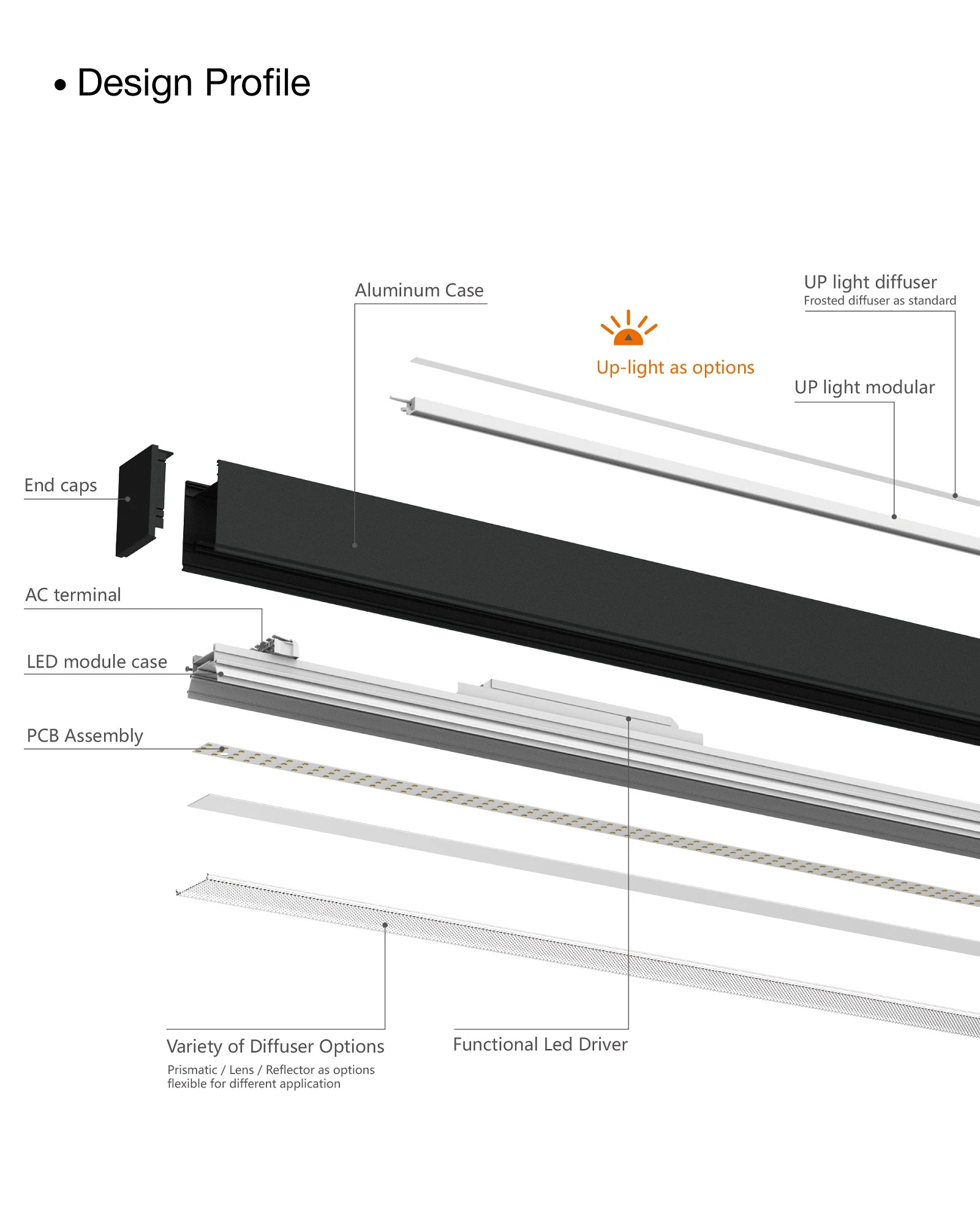

uniflex05

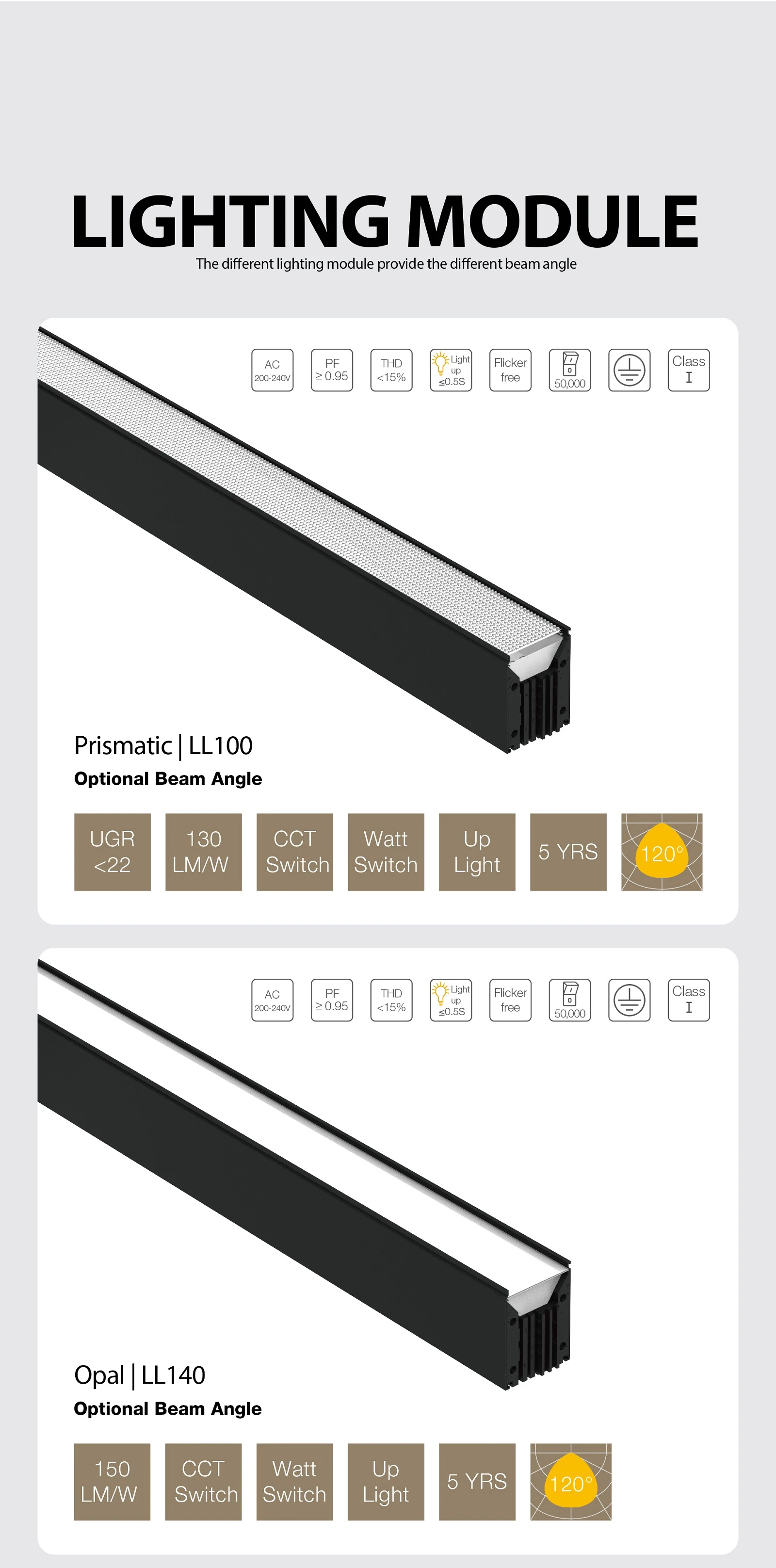

uniflex06

uniflex07

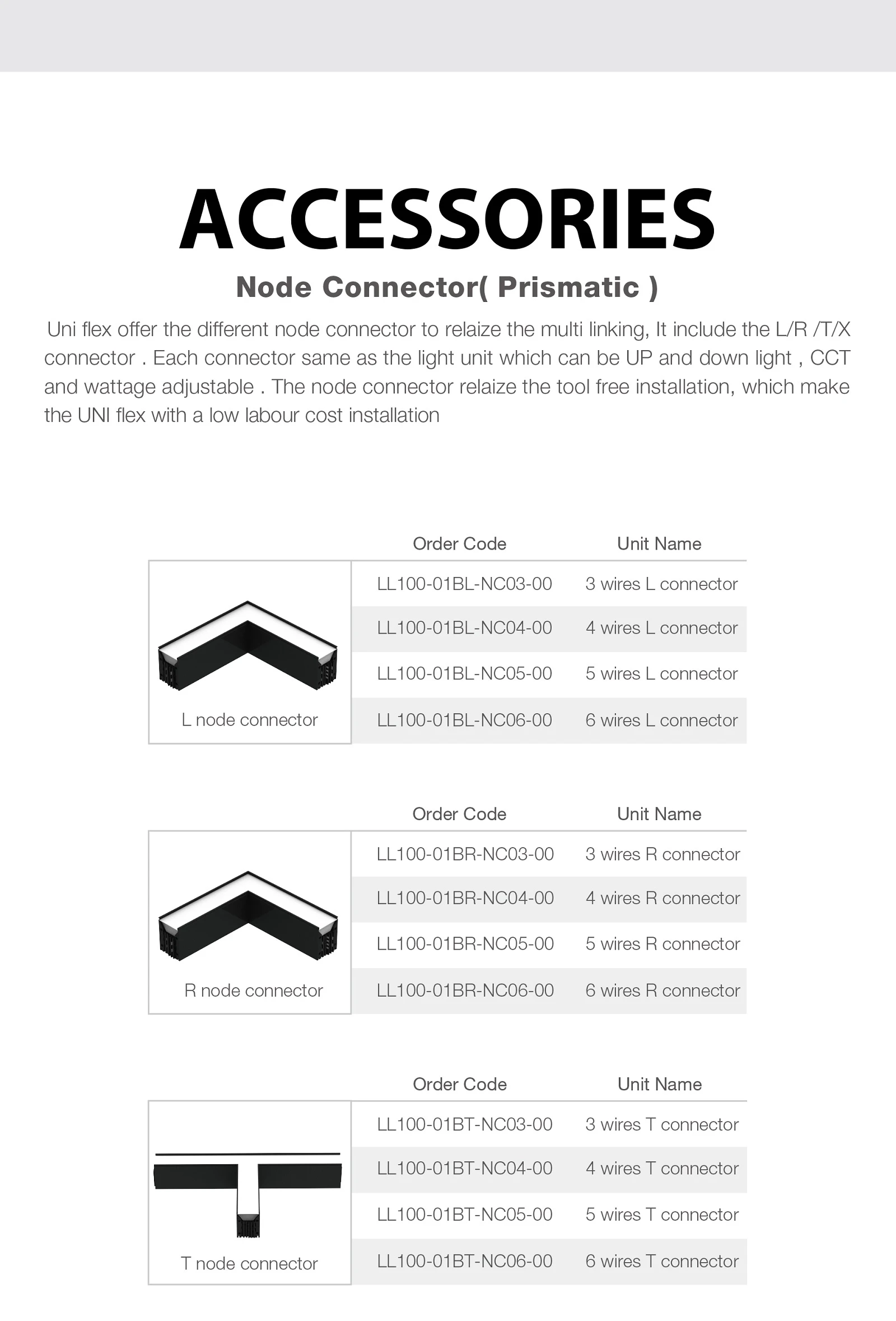

uniflex08

uniflex09
